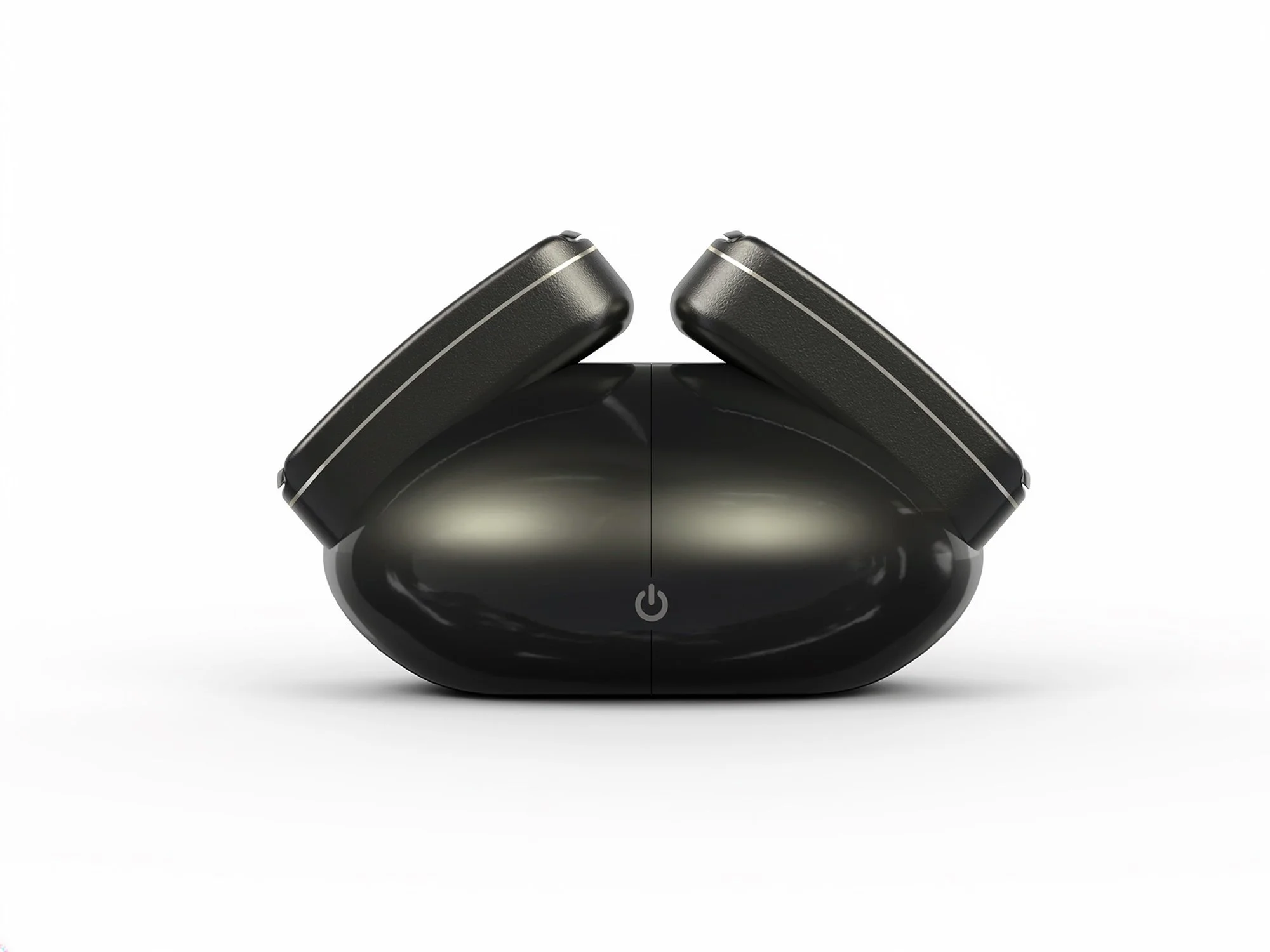

Massager Sub.seamless integration between the portable device and its base, focusing on a "unit-as-one" aesthetic that looks like a singular sculptural object when charging, yet remains highly ergonomic during use.
Industrial Design
3d Modelling

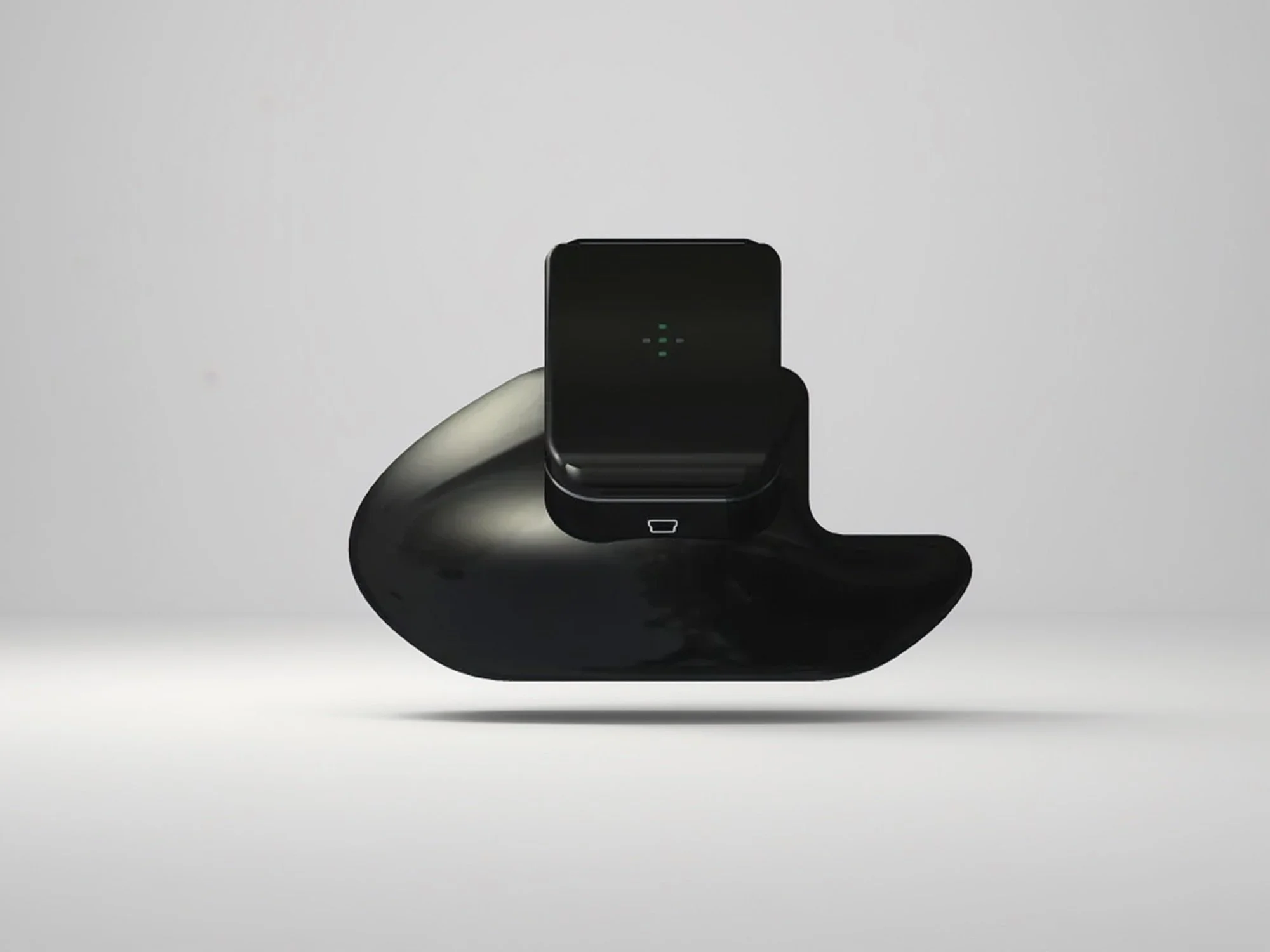

PrototypingThe ProcessOur design process focused heavily on form-factor and user interface. We utilized 3D modeling to iterate on the "Massager Sub" contours, ensuring the device fits naturally in the palm of the hand to reduce user fatigue. For the docking station, we engineered a magnetic alignment system that ensures a perfect charging connection every time the device is set down.
Through advanced 3D CAD workflows, we managed the internal spatial allocation for the motor, battery, and PCB components, ensuring that the sleek exterior did not compromise the mechanical performance. We used rendering to test various finishes, from soft-touch medical-grade silicone to metallic accents, to find the perfect balance of luxury and durability.
Deliverables
Complex Surface ModelingHigh-quality CAD files (STEP/IGES) featuring G2 continuous surfaces for a premium, seamless look and feel.
Magnetic Docking SchematicsTechnical design of the charging interface and weighted base for stability.
Component Housing DesignDetailed internal ribbing and mounting points for electronic components, optimized for plastic injection molding.

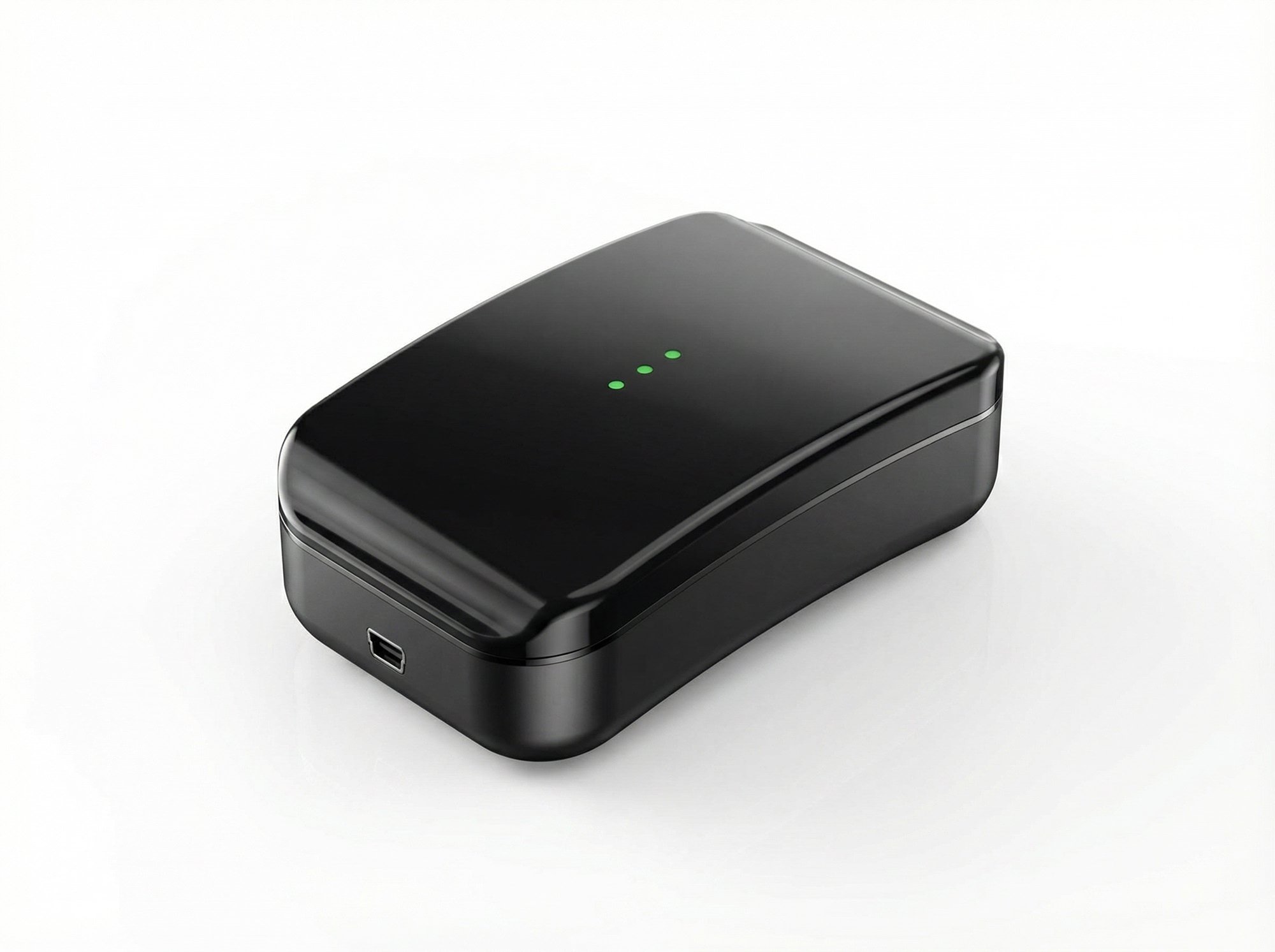

Product Lifestyle RendersPhotorealistic visualizations of the massager and dock in various colorways, staged in modern domestic environments to demonstrate market fit.
